ATTEN AT-8502D 2 IN 1 Dual LCD Hot Air Rework Staion
1.Voltage: AC (100 v/110 v/120V | | 220 v/230 v/240 v) 50/60 hz (Optioneel)
2. Vermogen: 800 w
3. Werktemperatuur: 0�� ~ 40��
if you want to know wholesale discount price,please contact us by e-mail.
Note:
If your shipment is deliveyellow to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Technical Parameter:
Rated voltage: AC 220V��10% 50Hz,
Complete machine power: 900W,
Temperature unit: Celsius/Fahrenheit (may transformation),
Establishment way: Pressed key adjustment,
Display mode: LED number obviously,
School warm way: Digital calibration,
Temperature locking way: Digital,
Temperature stability: ��2��C (static state),
Controls the warm precision: ��10��C (static state),
Adjustment scope: - 50��C~50��C,
Working conditions: 0~40��C relative humidity <80%,
Storage temperature: - 20~80��C relative humidity <80%,
Malfunction alert: Gives off heat the core to demonstrate H-E,
The sensor demonstrates S-E; close-down: Normal close-down,
Cold wind time delay close-down, power failure.,
Weight: 4.4kg
Specifications
SMD hot air solder station
1. Control warm,
2. Handpiece Length: 196MM
3. 220V available
4. Anti-static soldering station
SMD hot air solder station characteristic:
1. MCU computer provides the constant temperature to decide the warm PID high-level algorithm industrial control, controls warm is more precise.
2. LCD double screen distinction independent demonstration hot blast Taiwan and the electricity welding table's current active status and the parameter, are direct-viewing. The customer is clear to the equipment output state.
3. Output is big, the elevation of temperature is rapid.
4. Great current capacity diaphragm type pressure air pump, is suitable for each kind of blast nozzle sealing off SMD primary device.province electric works energy and so on.
5. Dormancy, auto-stop.
6. Originates the handle to press a key quickly, brings the faster adjustment temperature and the amount of wind for the user.
7. Provides the independent three group of memory memory function, causes the customer split-second-selection different temperature amount of wind combination working pattern.
8. Various units have the temperature compensation function, may guarantee the use period user active status stability.
9. Malfunction alert directive function.
What in Package:
1 X ATTEN AT-8502D
1 X 907 Iron
1 X Iron stand
1 X Hot air gun handle
1 X Handle stand
4 X Nozzles (A1125,A1126,A1130,A1170A)
1 X Clean sponge

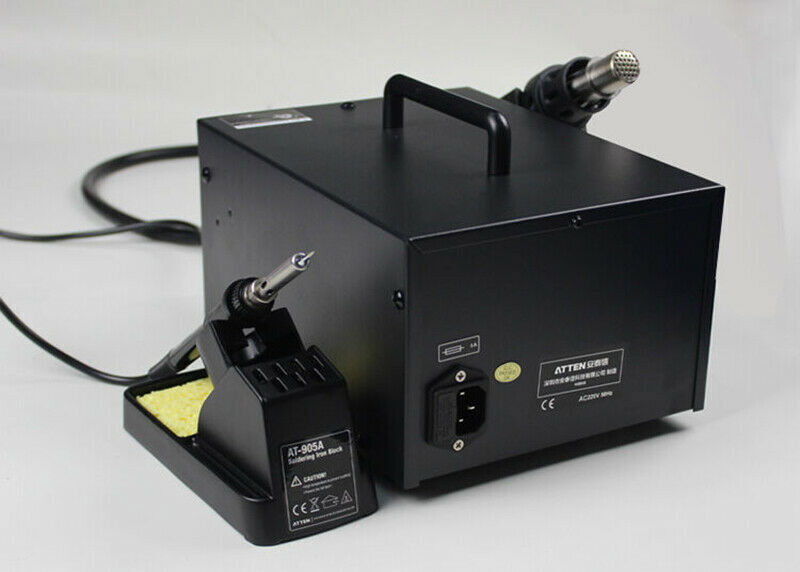

ATTEN AT-8502D 2 IN 1 Dual LCD Hot Air Rework Staion Photo Details
